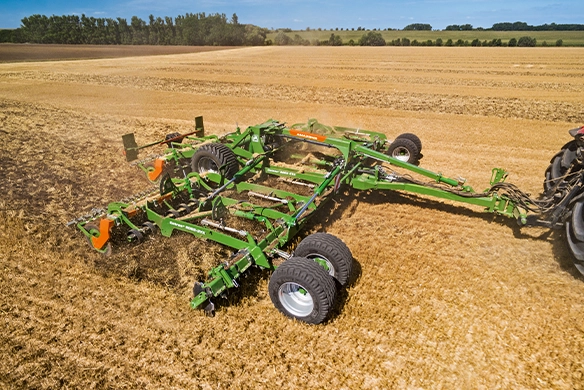

Amazone Catros+ 8003-2TX compact disc harrow working wide swaths of stubble with precision soil mixing and residue incorporation.

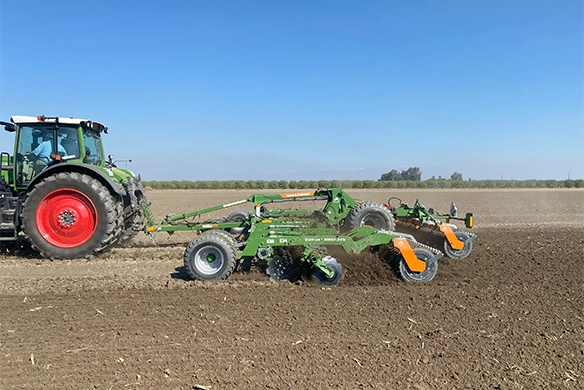

Fendt tractor pulling an Amazone Catros+ 9003-2TX compact disc harrow through a freshly plowed field under clear blue skies.

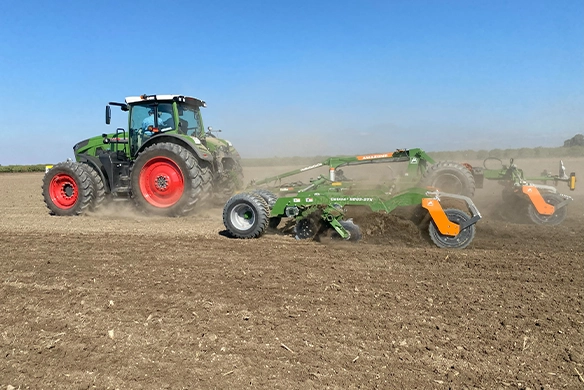

Dynamic field operation of the Amazone Catros+ 9003-2TX attached to a Fendt tractor, showcasing the implement’s width and efficient ground coverage.

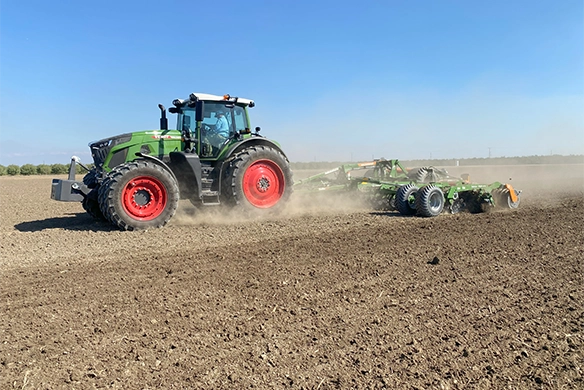

Fendt 900 Vario tractor and Amazone Catros+ 9003-2TX working side-by-side to prepare seedbed in expansive farmland

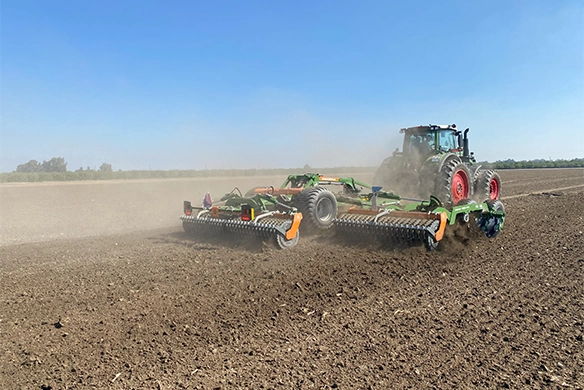

Rear view of Fendt tractor with Amazone Catros+ 9003-2TX in action, demonstrating even soil distribution and robust tillage performance.

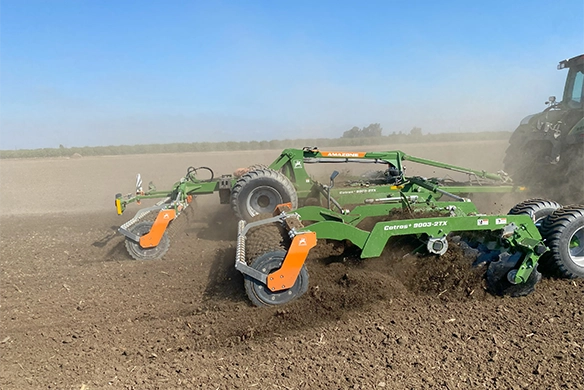

Close-up side view of the Amazone Catros+ 9003-2TX working in the soil, showing aggressive disc action and soil mixing in progress

Side view of Amazone Catros+ 8003-2TX disc harrow showing twin transport wheels and folding frame design for efficient transport.

Cutaway illustration of the Amazone Catros+ maintenance-free disc bearing unit with sealed ball bearings for long-term durability.

Amazone DW disc roller attachment with deep soil contour following for improved structure and water management in seedbeds.

Amazone KWM wedge ring roller for the Catros+ harrow, delivering consistent reconsolidation across variable soil types.

Amazone SW cage roller for Catros+ tillage system, designed to break clods and level soil after discing for optimal seedbed preparation.

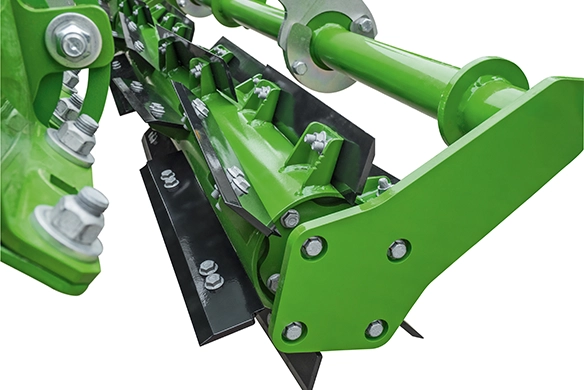

Detailed view of Amazone Catros+ disc harrow blade mounting system with bolted tine supports for reliable field performance.

Thumbnail for Amazone Catros+ 8003-2TX compact disc harrow working wide swaths of stubble with precision soil mixing and residue incorporation.

Thumbnail for Fendt tractor pulling an Amazone Catros+ 9003-2TX compact disc harrow through a freshly plowed field under clear blue skies.

Thumbnail for Dynamic field operation of the Amazone Catros+ 9003-2TX attached to a Fendt tractor, showcasing the implement’s width and efficient ground coverage.

Thumbnail for Fendt 900 Vario tractor and Amazone Catros+ 9003-2TX working side-by-side to prepare seedbed in expansive farmland

Thumbnail for Rear view of Fendt tractor with Amazone Catros+ 9003-2TX in action, demonstrating even soil distribution and robust tillage performance.

Thumbnail for Close-up side view of the Amazone Catros+ 9003-2TX working in the soil, showing aggressive disc action and soil mixing in progress

Thumbnail for Side view of Amazone Catros+ 8003-2TX disc harrow showing twin transport wheels and folding frame design for efficient transport.

Thumbnail for Cutaway illustration of the Amazone Catros+ maintenance-free disc bearing unit with sealed ball bearings for long-term durability.

Thumbnail for Amazone DW disc roller attachment with deep soil contour following for improved structure and water management in seedbeds.

Thumbnail for Amazone KWM wedge ring roller for the Catros+ harrow, delivering consistent reconsolidation across variable soil types.

Catros+

Built with German precision for over 20 years, the Catros+ excels in stubble cultivation and seedbed prep. The Catros+ features the innovative Smart Frame System, which offers precise on the fly hydraulic depth adjustment, without leaving the cab. This ensures both rows of 20-inch serrated discs work at the same depth for consistent working result and a consistently level machine at all working depths, minimizing bouncing, plugging and side-pull. It includes class-leading durable metal-sealed oil filled bearings, versatile rollers options, and add-ons like a knife-roller or GreenDrill for seeding cover crops make the Catros+ a versatile machine.

Request a Quote Request a Demo Download Brochure

Specifications

Models	Working Width (FT)	Disc Diameter (IN)	Number of Discs	Shallow Tillage Discs	Approx. Weight (LBS)	Working Speed (MPH)	Disc Bearing Seal	Disc Bearing Lubrication	Depth Adjustment	Wing Pressure	Front Tools	Transport Width (FT)	Power Requirements (HP/FT)
Catros+ 7003-2TX	23	20	2 x 28	X-Cutter (option)	17,284	10+	Metal Face Seal	Oil Filled	Hydraulic (SmartFrame)	Hydraulic ContourFrame	Knife Roller (option)	9.8	9-13
Catros+ 8003-2TX	26	20	2 x 32	X-Cutter (option)	18,287	10+	Metal Face Seal	Oil Filled	Hydraulic (SmartFrame)	Hydraulic ContourFrame	Knife Roller (option)	9.8	9-13
Catros+ 9003-2TX	29.5	20	2 x 36	X-Cutter (option)	19,886	10+	Metal Face Seal	Oil Filled	Hydraulic (SmartFrame)	Hydraulic ContourFrame	Knife Roller (option)	9.8	9-13
